Flipahjól frá PFERD
Þvermál: 60 mm
Þykkt: 30 mm
Grófleiki: CO-COOL40
Leggur - Lengd: 40 mm
Leggur - Þvermál: 6 mm

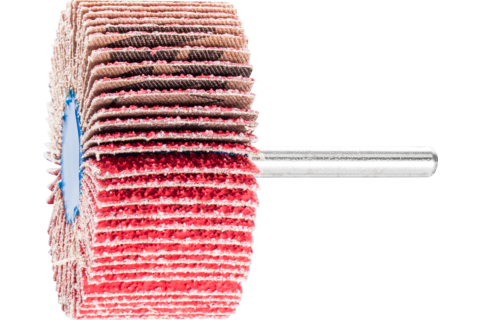

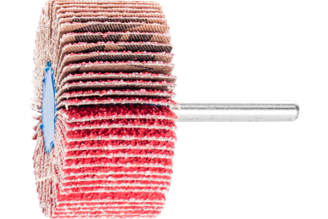

Ceramic oxide grain mounted flap wheel F dia. 60x30mm shank dia. 6 mm CO-COOL40 for high stock removal on stainless steel.
On mounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure. Their flexibility enables them to adapt perfectly to the contours of the workpiece. The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond.
In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft".
For aggressive grinding with maximum stock removal rate on hard materials which do not conduct heat well. Consistently high performance due to self-sharpening ceramic oxide grain. Active grinding additives in the coating substantially improve the stock removal rate, prevent clogging and result in cooler grinding.
Materials that can be worked:
Aluminium
Annealed cast iron
Brass
Bronze
Cast steel
Cobalt-based alloys
Copper
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Nickel-based alloys (e.g. Inconell and Hastelloy)
Stainless steel (INOX)
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Titanium
Applications:
Deburring
Leveling
Step-by-step fine grinding
Structuring (matt finishing, brush matting and satin finishing)
Surface work
Work on weld seams
Drive types:
Drive spindle
Flexible shaft drive
Straight grinder
